Semiautomatic Packaging System

Technical Information

The System Includes

3 Manual filling and weighing stations

2 Connecting conveyors

Sealing machine



Rate

Up to 40 sealed units per minute.

Capacity of 70-250g per unit



Operators

Minimum 3



Room Space

Minimum 15m2



Air Pressure (at the machine)

Compressor Capacity: 10 CFM

Pressure: 7 Bar

Oil free, dry Air



Electrical Supply

3 phase, 380V, 10A

*Optional: MAP atmosphere control

PDF
Learn more about Arilsystem-automatic-packaging-system-add-on

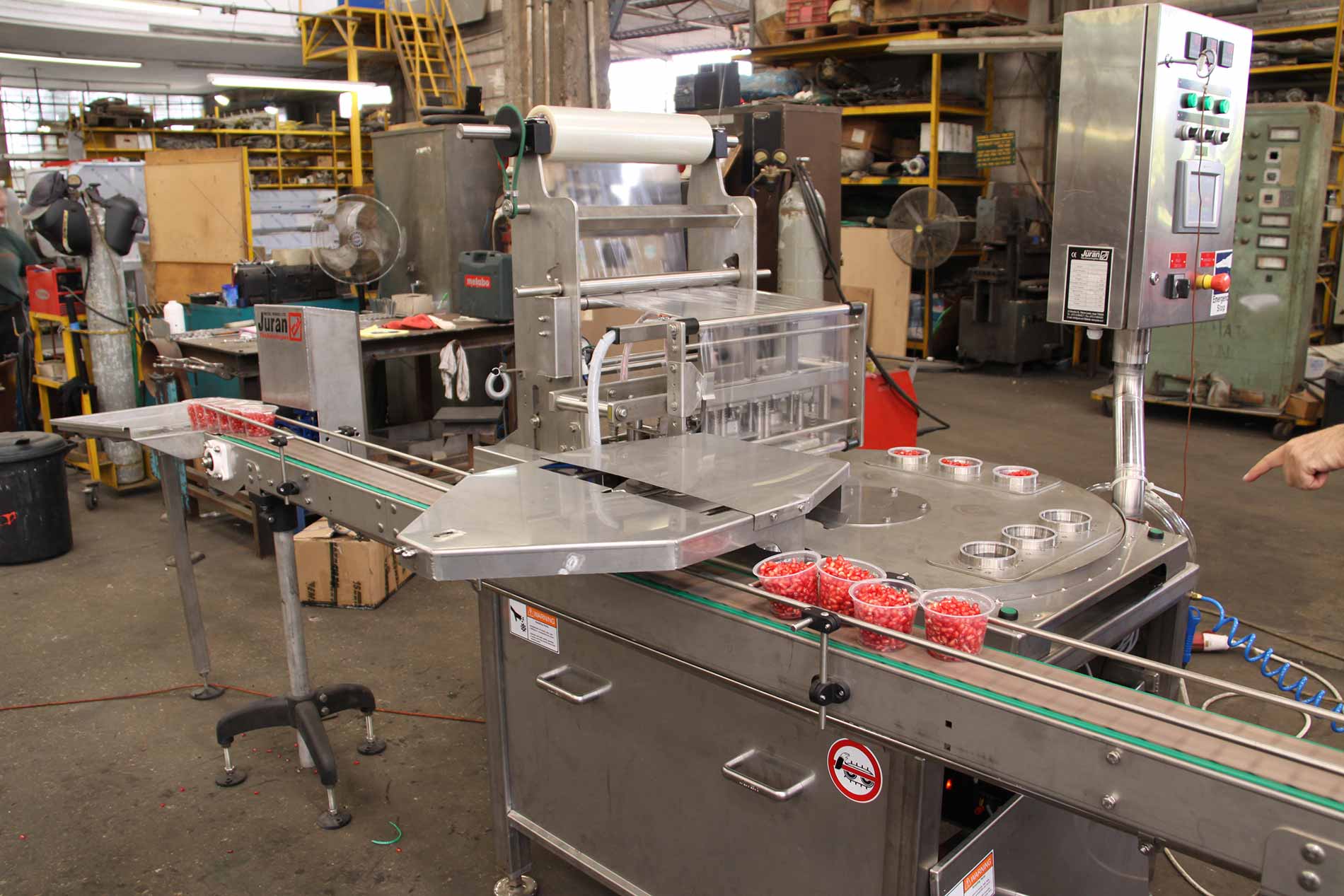

ArilSystem Semiautomatic Packaging System
The packing stage of the pomegranate arils
Workers in the packing phase of the Arils after extraction
Boxes with arils on the conveyor belt

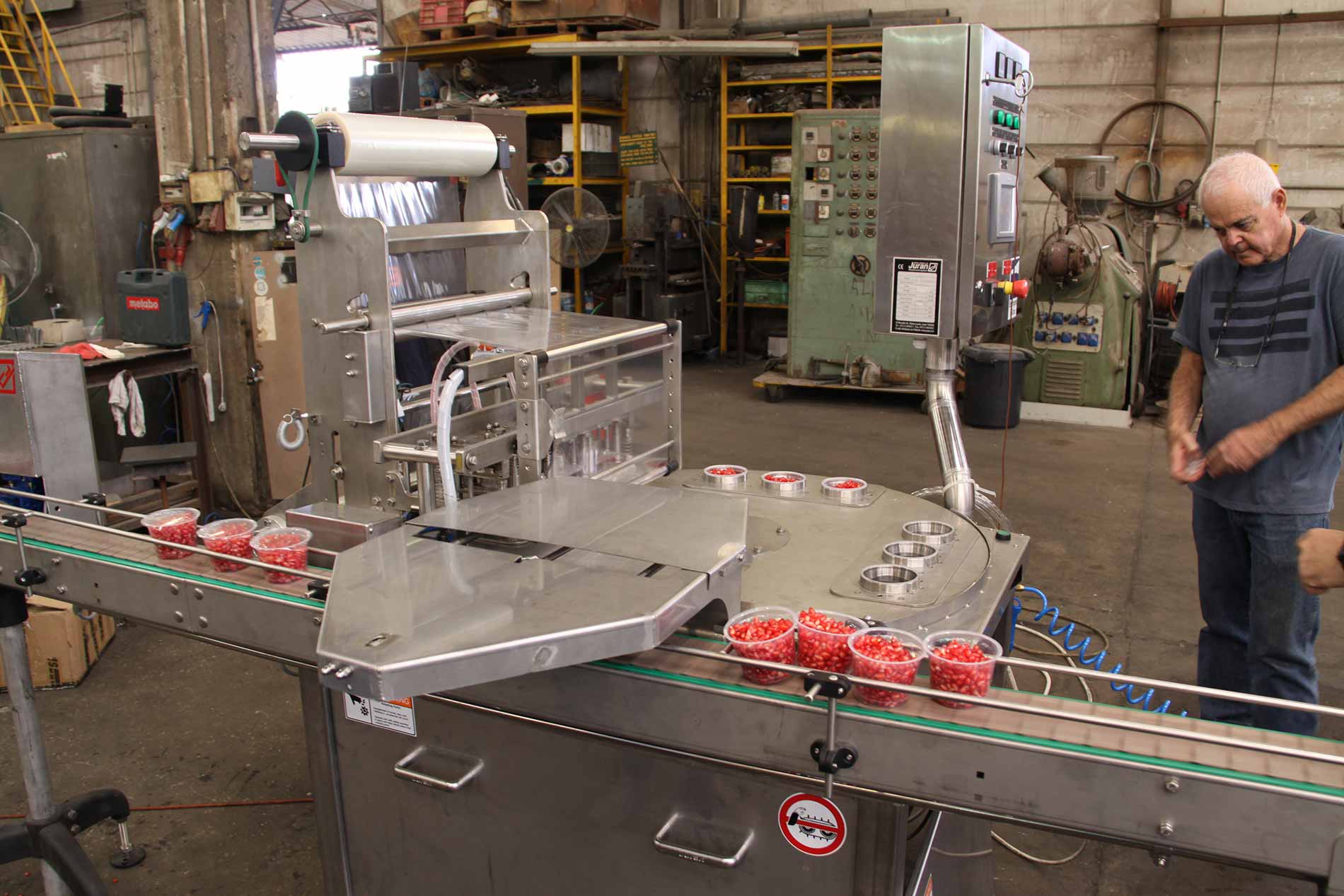

The transition of pomegranate arils to the packaging stage
Working on the packaging system of ArilSystem

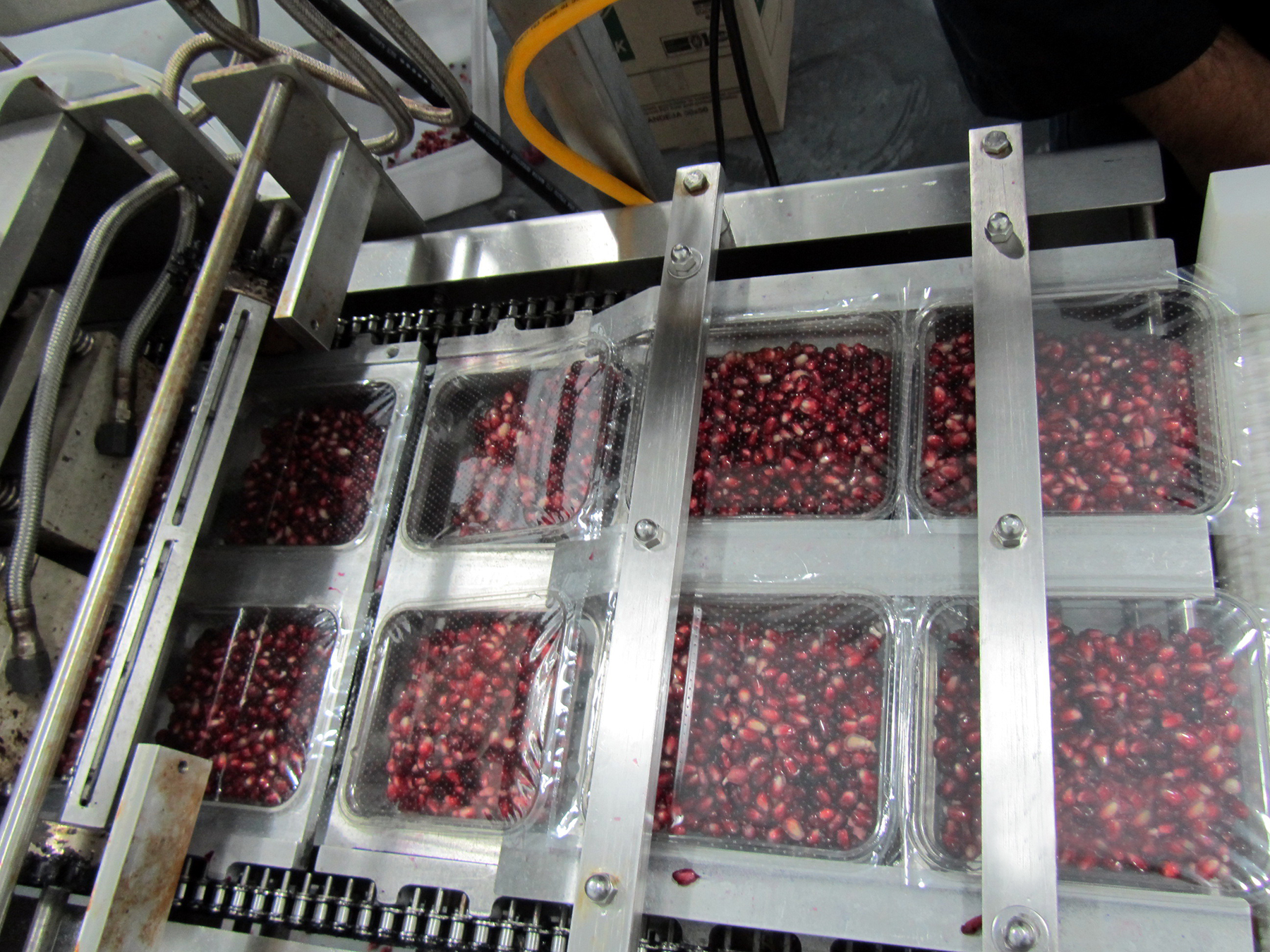

The pomegranate arils are divided into packages
Packaging of the pomegranate arils in small containers ready for marketing
Boxes with arils on the conveyor belt
The conveyor belt of a system for packing pomegranate Arils
Pomegranate arils are collected after extraction and packaged

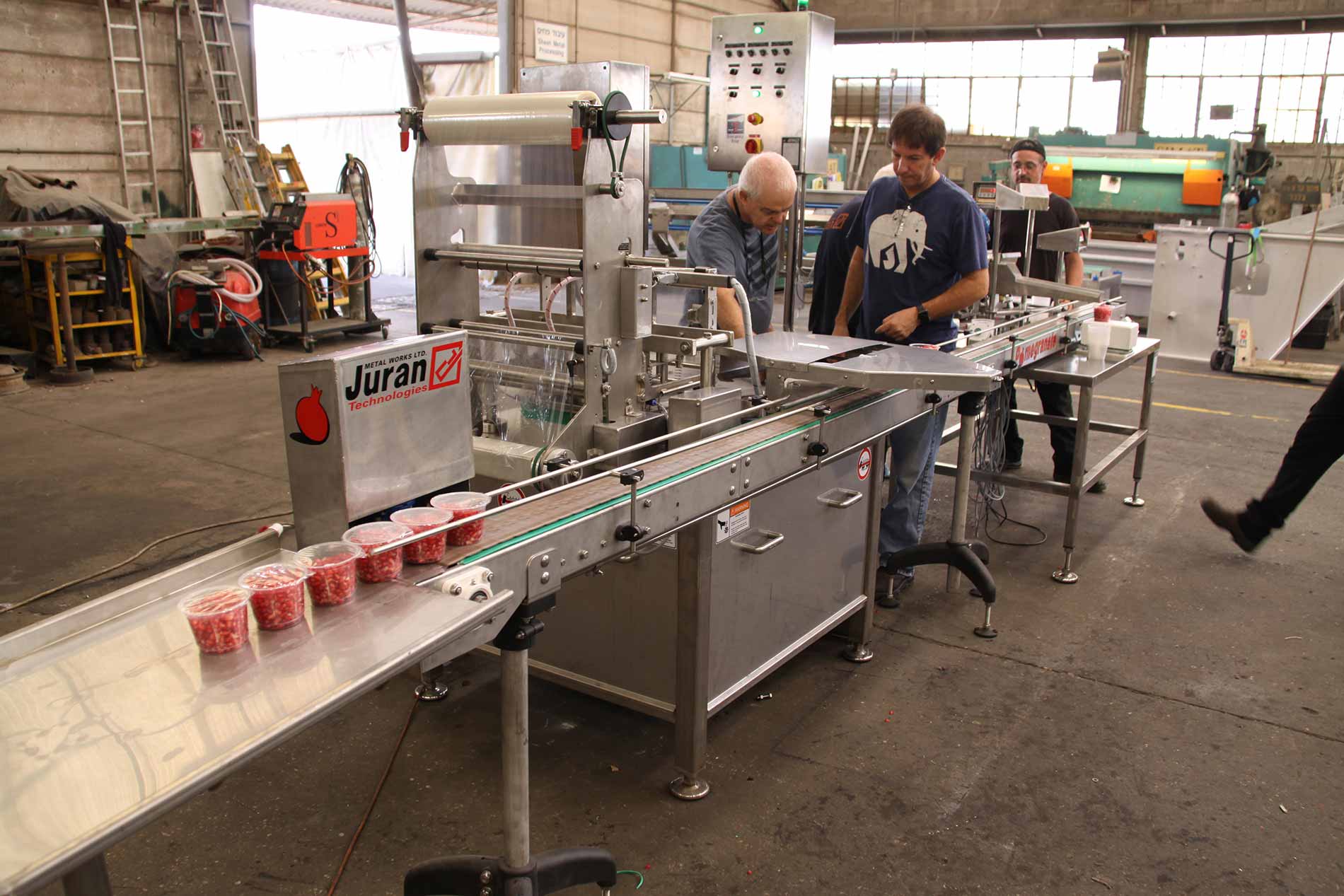

People near the pomegranate seed packing machine
A case with ready-made boxes with pomegranate arils intended for marketing
